Complete Set: Generation 1 set + foot pump + 18-ton Ram

Order Set #20001

$2,895.00

Gen 1 tool set #20-00011

  • This set makes it easy to replace front and rear wheel bearings directly on vehicles with Generation 1 bearings in 15 – 30 minutes.
  • Set comes with a fixing plate that is universal for bearing removal press feet. It can be used with feet to remove and replace Generation 2 and Generation 3 wheel bearing types. (See below)
  • Designed to work with the hub on the car and to fit the most passenger cars with Gen 1 wheel bearings.
  • Allows access when the knuckle has uneven surfaces or fragile brake shields behind the hub.
  • No more time-consuming struggle in the shop press.
  • No need for alignments or ADAS calibration.

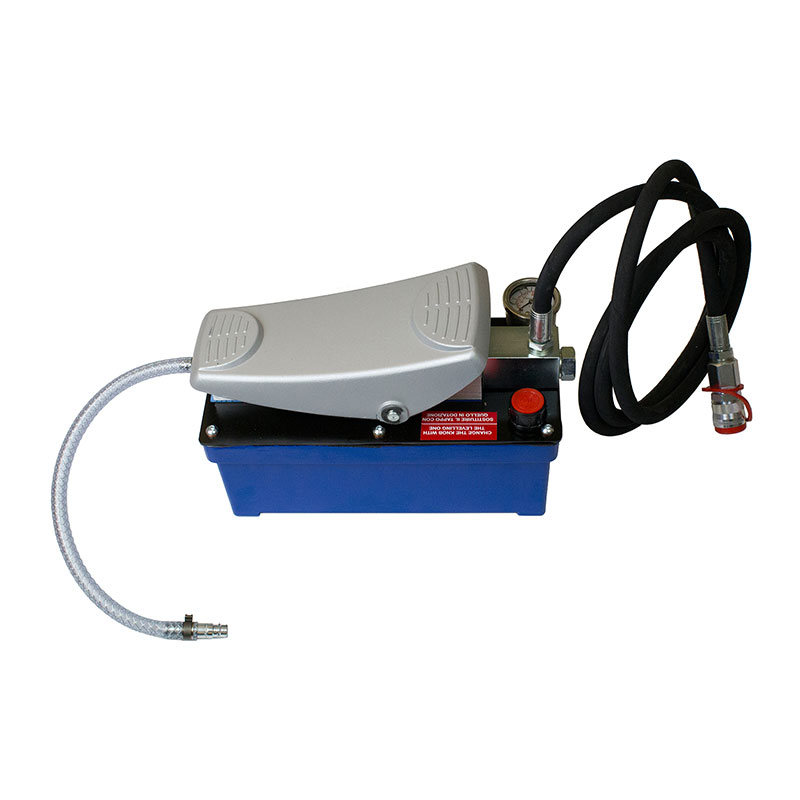

Foot pump #1036

  • Premium Air over hydraulic foot pump has variable speeds for fine control.
  • The foot pumps maximum pressure is 10,000 PSI. It is used with all of our hydraulic cylinders.
  • The foot pump comes with a pressure gauge.
  • Equipped with a 7 ft. hose and drip-free quick disconnect female coupling.
  • Oil tank holds 1/3 gallon (1.3 Liters)

18 ton Ram #20-03003

  • 18 tones pressing and pulling power.
  • “light weight” hydraulic cylinder in a compact size only 6 lbs (2.8 kg).
  • Automatic piston return
  • Designed for everyday use in auto repair shops.
  • Can be used with all of our passenger car tools and carriage beams M10-M22 with the proper adaptor.
  • The cylinder´s hydraulic pressure can be combined with punching force from the blow of a hammer. You MUST use the punching socket #1086-6 provided.

Patent Pending European Application No. EP15189415.1
US Patent 10.047.772B2
